Hanway 1604/6
Flexography Meets its Match with the Hanway 1604/6 Series
Achieving industrial flexible production using single-pass, super high-speed variable digital printing technology, the Hanway 1604/6 series can achieve personalized patterns containing unique barcodes and QR codes.
The digital corrugated press offers grayscale technology using environmentally friendly water-based inks including white and special colors for printing on coated or uncoated substrates.
It also has the ability to connect with an MES system for intelligent production management. This variable corrugated digital series brings industrial-like flexography into your pressroom.
Experience Rapid Turnaround Times That Don't Require a Minimum Order
Efficiency is second nature with the Hanway 1604/6 series’ ability to produce quality printing without the need to change plates, thus reducing the need for highly experienced personnel. Rapid turnaround times that don’t require a minimum order is one of the many benefits of owning a model from this series.
The Hanway 1604 is equipped with 56 industrial-grade piezoelectric Kyocera printheads with 4-color capabilities. The 1606 boasts 84 printheads and six colors. Each machine’s capacity can achieve up to 492 feet per minute. Quality printing is achieved on most kinds of corrugated boards with different specifications. The series features infrared hot air drying, a warp detection system, automatic printhead cleaning, and a high-powered, adjustable, multi-zoned vacuum system. It is also compatible with Onyx, Caldera and other third-party RIPs.

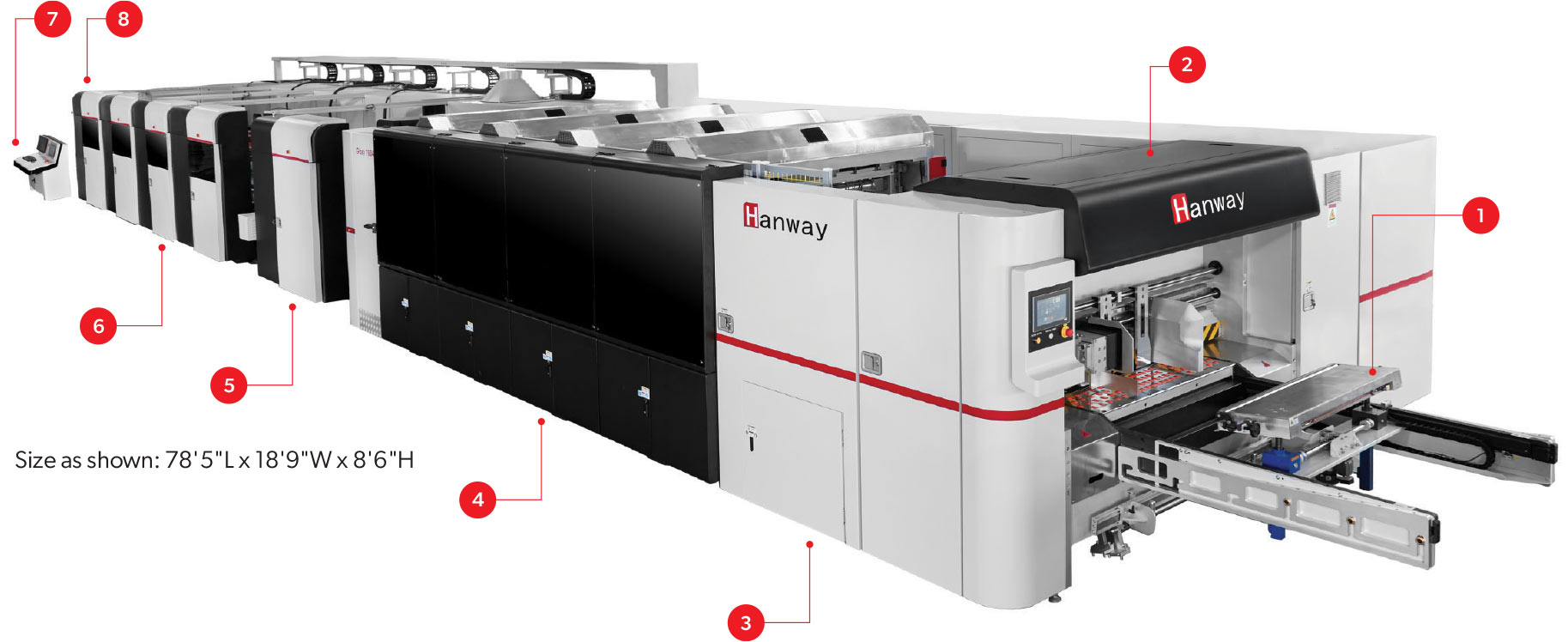

1 Lead edge feeding system
2 Warp detection system
3 Primer station
4 1604: 4 print stations, 1606: 6 print stations
5 Varnish/coating station²
6 IR/hot air tunnel dryer²
7 Hanway single-pass control station
8 Belt exit to offload³
Hanway 1604/6
Digital Packaging Enters the Era of Mass Production
High-speed
Become more competitive by delivering quick turnaround times with a press that offers speeds up to 150 meters/minute.
High-quality
Attain highly profitable print requests using greyscale and six-color printing.
Versatility
Achieve versatility with a press that accepts both coated and uncoated stocks. Eliminate the need for plate-making and the need to require minimum print runs.
Personalization
Customize packaging using variable barcodes and QR code printing.
Intelligent
Interconnection with MES system that achieves intelligent production management.
Color Fidelity
Ensure precise color with X-rite integration.
Modular
Maximize productivity with quick installation, easy maintenance and efficient output.
Eco-friendly
Achieve sustainability with water-based inks that are 100% free of UV-reactive chemistry.
Excellent Color Reproduction
Discover the outstanding capabilities of our printing technology, delivering excellent color reproduction that brings your packaging designs to life with unmatched vibrancy and precision.
Quick Job Changeover
Specifications
| Press | 1604 | 1606 | |
|---|---|---|---|
| Printhead Technology | Kyocera | Kyocera | |
| Max. Config. | 56 heads | 84 heads | |
| Max. Colors | 4 | 6 | |
| Max. Sheet Size* | 63" x 110.25" 1.6 m x 2.8 m | 63" x 110.25" 1.6 m x 2.8 m | |
| Linear Speed* | Express | 492 ft/min 149.96 m/min | 492 ft/min 149.96 m/min |
| Production | 328 ft/min 99.97 m/min | 328 ft/min 99.97 m/min | |
| Quality | 164 ft/min 49.99 m/min | 164 ft/min 49.99 m/min | |
- One year warranty
- Aqueous, single-pass head system
- Kyocera KJ4B grayscale printheads
- Robust, industrial design
- Intelligent media feed system
- Powerful multi-zoned vacuum system that is adjustable
- IR/hot air dryers
- Coated or uncoated media print capabilities¹
- Warp detection system
- Head strike avoidance system
- Automatic printhead cleaning
- White and special color ink capability
- Variable data capability
- Compatible with Onyx, Caldera and other third party RIPs
- One year warranty
- Aqueous, single-pass head system
- Kyocera KJ4B grayscale printheads
- Robust, industrial design
- Intelligent media feed system
- Powerful multi-zoned vacuum system that is adjustable
- IR/hot air dryers
- Coated or uncoated media print capabilities¹
- Warp detection system
- Head strike avoidance system
- Automatic printhead cleaning
- White and special color ink capability
- Variable data capability
- Compatible with Onyx, Caldera and other third party RIPs
¹Coated media printing requires optional dryer
²Optional
³Optional stacker is available
*Meters rounded to the one hundredth decimal
